How to: Create External Connections as a Firm Admin in Portal

Requirements:

• Firm Admin Role
• Near end group name
• Far end group name
• Button Type (Ringdown or Shoutdown)
• Near end button label
• Far end button label

Instructions:

1. Navigate to Cloud9 Administration Portal and login.

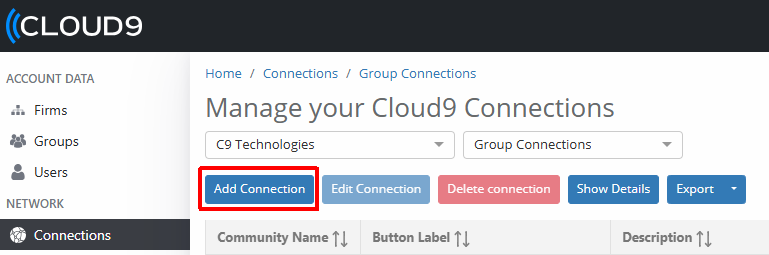

2. Click "Connections" on the navigation panel.

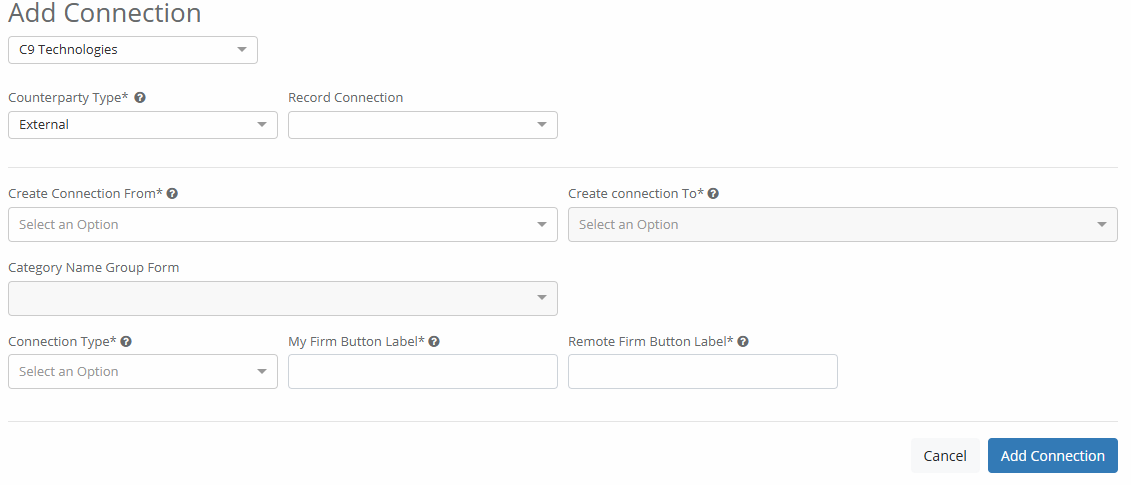

3. Click "Add Connection".




4. Fill out applicable fields
   • Counterparty Type: External
   • Record Connection: Match User Preference
   • Create Connection From: Near end group name
   • Create Connection To: Far end group name
   • Connection Type: Button Type
   • My Firm Button Label: Near end button label
   • Remote Firm Button Label: Far end button label




5. Click "Add Connection".


6. Adding button to users layout
   • Option 1 - Does not require user to relog into Cloud9 application

     • Instruct the far end and near end trader to accept the invitation in their "New Invitations".
   • Option 2 - Requires near end trader to relog into Cloud9 application
     • Add connection to user's layout via Edit Layout in the Users section.
